5 Causes of Contamination in Hot Runner Systems and How to Prevent Them
Contamination in hot runner systems can severely impact part quality, process reliability, and system longevity. These issues often manifest as black specks, flow streaks, or inconsistent finishes on molded parts—indicators of deeper systemic problems. Whether caused by degraded polymers, trapped gases, or buildup from poor maintenance, contamination undermines both operational efficiency and end-product value.
We’ll outline five common sources of hot runner contamination, providing summaries, troubleshooting tips, and proven strategies for prevention. A clean injection molding process isn’t just ideal—it’s essential for reducing downtime, maximizing tool life, and meeting today’s high-performance standards in plastic part manufacturing.
Ensure Product Quality With a Clean Injection Molding Process
Minimizing contamination in hot runner systems delivers measurable advantages across both production efficiency and product quality. By maintaining clean processing conditions, manufacturers can:
- Ensure Consistent Product Appearance: Avoid blemishes like black specs or streaks that compromise visual quality.
- Reduce Scrap and Rework: Lower the cost of rejected parts by eliminating contamination-related defects.
- Increase Equipment Lifespan: Prevent buildup and degradation that can damage hot runner components.
- Enhance Process Stability: Maintain tighter control over molding conditions and material behavior.
- Optimize Production Time: Reduce downtime caused by maintenance, troubleshooting, or mold cleaning.
Effective injection molding contamination control ultimately supports higher yields, lower operational costs, and more reliable delivery of high-performance plastic parts.
Contact +1 (908) 281-0055 or [email protected] to discuss your Hot Runner Systems today! Experts in Hot Runner Cleaning, and Maintenance for all OEM.
1. Material Degradation

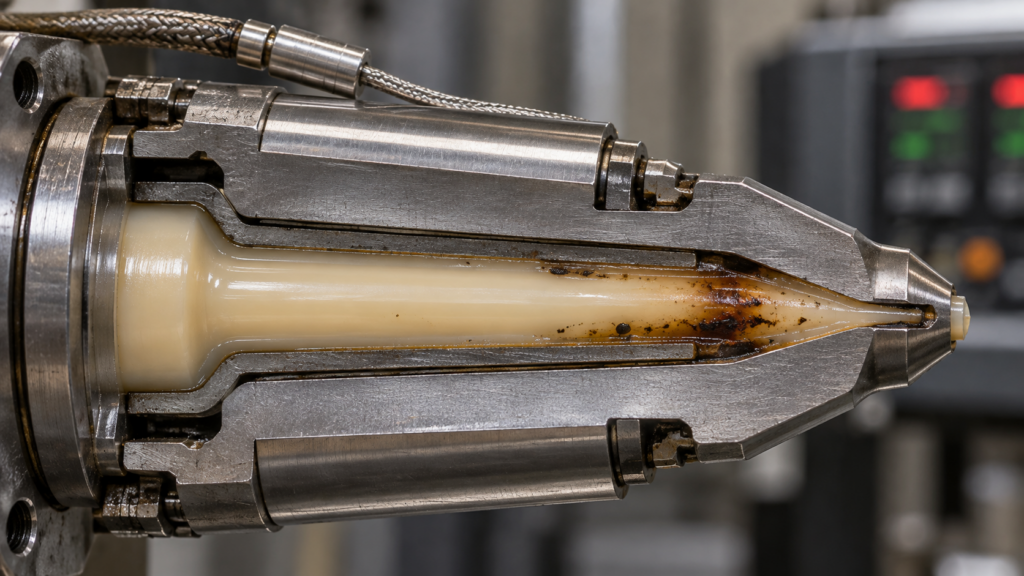

Material degradation occurs when polymers are subjected to prolonged exposure to heat, particularly when the material sits idle sin the hot runner manifold or nozzle. Over time, this heat exposure causes chemical breakdown of the polymer chains, producing byproducts like gas, discoloration, and carbonized particles. This leads to visual and structural defects in molded parts, often showing up as black specs or dark streaks. Resin types with narrow processing windows, such as POM or PVC, are especially susceptible.
Troubleshooting
- Material Flow Analysis: Use flow simulation software or monitor pressure at various zones to detect areas with stagnation.
- Thermal Profiling: Conduct a thermal profile check across manifold zones to identify inconsistent or overly high temperatures.
- Downtime Review: Review operational logs to identify how long the system remains idle with material in it, which can correlate with degradation onset.
- Residue Inspection: Disassemble the hot runner system (if needed) to inspect internal components for signs of burn marks, color changes, or degraded plastic.
Prevention
- Purging Schedule: Implement a routine purging schedule using mechanical or chemical purging compounds that match the polymer’s processing characteristics.
- Dwell Time Limits: Establish clear protocols to empty the system of material during extended downtimes.
- Material Selection Guidance: Choose materials that can withstand higher residence times or modify process parameters accordingly.
- Temperature Control Systems: Use advanced temperature controllers that offer zone-specific accuracy and rapid response to fluctuation.
2. Carbon Buildup

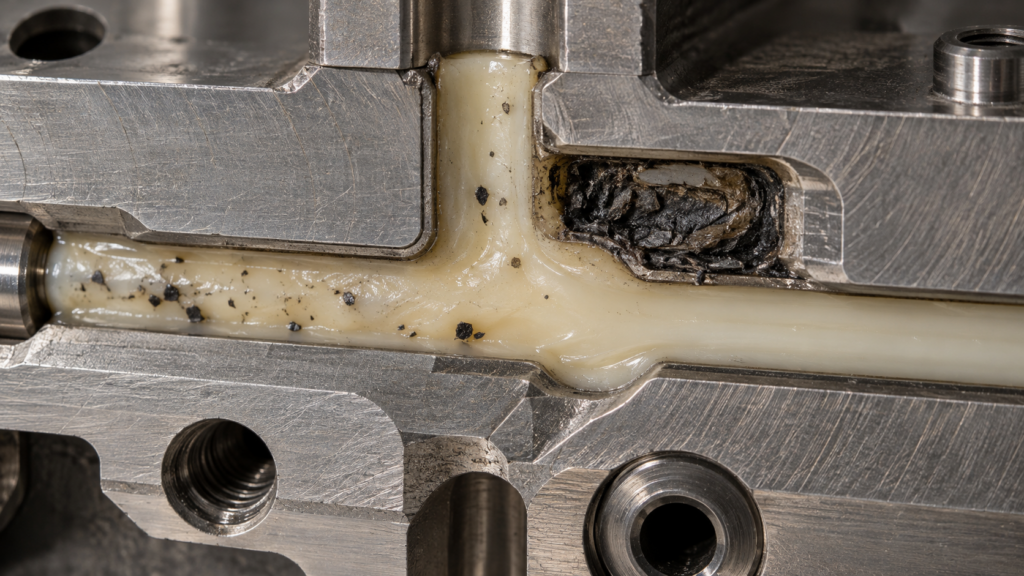

Carbon buildup results from the progressive accumulation of degraded polymer residues, often due to inadequate purging, inconsistent temperatures, or poor material compatibility. This carbonized matter adheres to hot runner components, narrows flow channels, and eventually flakes off into the melt stream, contaminating finished parts. It also accelerates wear and tear on the system.
Troubleshooting
- Pressure Monitoring: Track injection pressure over time. Increasing pressure may indicate a narrowing of channels due to buildup.
- End-of-Arm Tooling Inspection: Check gates and nozzles for black specs or material consistency variations.
- Visual Bore Scoping: Use a borescope for non-invasive internal inspection of nozzles and manifolds.
- Purge Analysis: Review the outcome of purge cycles to assess if material residue or carbon is being effectively removed.
Prevention
- High-Performance Purge Compounds: Use glass-filled, abrasive, or chemical purging agents that are effective at higher temperatures and clean thoroughly.
- Cycle-Based Maintenance: Create a schedule based on the number of cycles or run hours rather than just a calendar to clean the hot runner system.
- Temperature Logging: Continuously log and analyze temperature data to identify any spikes or dips contributing to material decomposition.
- Surface Coatings: Apply anti-stick or low-friction coatings to internal components to reduce material adherence.
3. Venting Issues
Improper venting allows gases and volatiles from the plastic melt to become trapped within the mold cavity. This creates localized burning, incomplete fills, or surface blemishes. It also contributes indirectly to hot runner contamination by facilitating material degradation under high-pressure gas pockets. Vents that are too shallow, blocked, or poorly placed are primary culprits.
Troubleshooting
- Short Shot Analysis: Use short shots to examine where fill progression stops and locate areas potentially suffering from venting issues.
- Smoke and Burn Marks: Visually inspect parts for signs of diesel effect (burn marks) at specific mold locations.
- Vacuum Testing: Apply vacuum tests to the mold to assess the venting capacity and identify restricted areas.
- Mold Flow Simulation: Use software simulations to redesign venting layouts and ensure balanced gas evacuation.
Prevention
- Venting Channel Redesign: Incorporate deeper, wider, or additional vents in the mold design if recurring gas trap issues occur.
- Routine Cleaning: Include venting channels in regular mold cleaning operations to prevent buildup.
- Material Drying: Ensure materials are properly dried before molding to reduce volatiles.
- Vacuum Assist Systems: Implement vacuum assist molding technologies to actively extract gases during injection.
4. Inadequate Maintenance

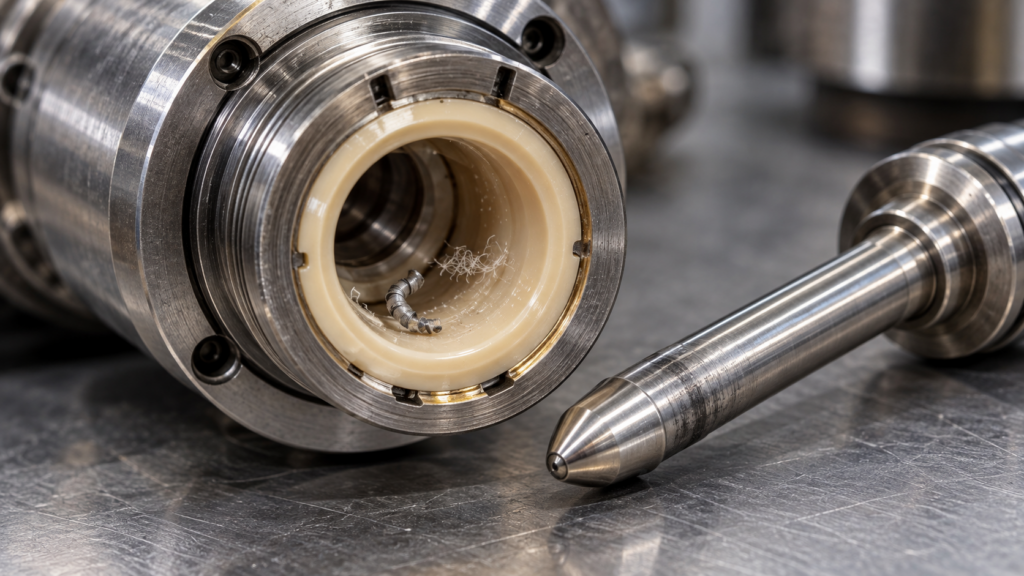

Poor or inconsistent maintenance is a leading cause of systemic contamination in hot runner systems. Debris, wear particles, carbon deposits, and degraded seals can all accumulate if the system is not regularly serviced. Over time, these issues escalate into flow restrictions, heating inconsistencies, and product quality defects.
Troubleshooting
- Cycle Tracking: Monitor part count or runtime to correlate contamination with missed maintenance windows.
- Heater Resistance Checks: Regularly measure the resistance of heaters to detect internal degradation or shorts.
- O-Ring and Seal Inspection: Check for worn or brittle seals that may allow leakage and contamination.
- Comparative Analysis: Compare visual inspection reports over time to spot trends in residue buildup.
Prevention
- Detailed Maintenance Logs: Maintain digital or written logs of every cleaning, replacement, and inspection.
- Service Interval Alerts: Utilize smart controllers or factory systems to trigger alerts based on usage.
- Standard Maintenance Kits: Keep preassembled kits of gaskets, heaters, thermocouples, and cleaning agents for quick service.
- Third-Party Maintenance Support: Partner with service providers like Polymer Cleaning Technology for scheduled system audits and cleaning.
5. Improper Shutdown and Startup Procedures
When a hot runner system is shut down or restarted incorrectly, residual material can degrade, overheat, or flow inconsistently. Improper startup can cause surges, which introduce degraded or un-melted material into the part cavity. This is especially problematic during material or color changes.
Troubleshooting
- Startup Flow Monitoring: Observe initial flow at startup for discoloration, surging, or irregularities.
- Startup Delay Records: Review logs to determine how long the system remained idle with hot material inside.
- Thermal Uniformity Check: Ensure heaters are warming up at an even and gradual rate to avoid hot spots.
- Purge Validation: Examine purge results for un-melted resin or carbon remnants that indicate poor startup.
Prevention
- Controlled Temperature Ramp-Up: Set heaters to rise incrementally, with PID control to avoid overshooting.
- Purging on Shutdown: Always run an approved purge cycle before powering down the system.

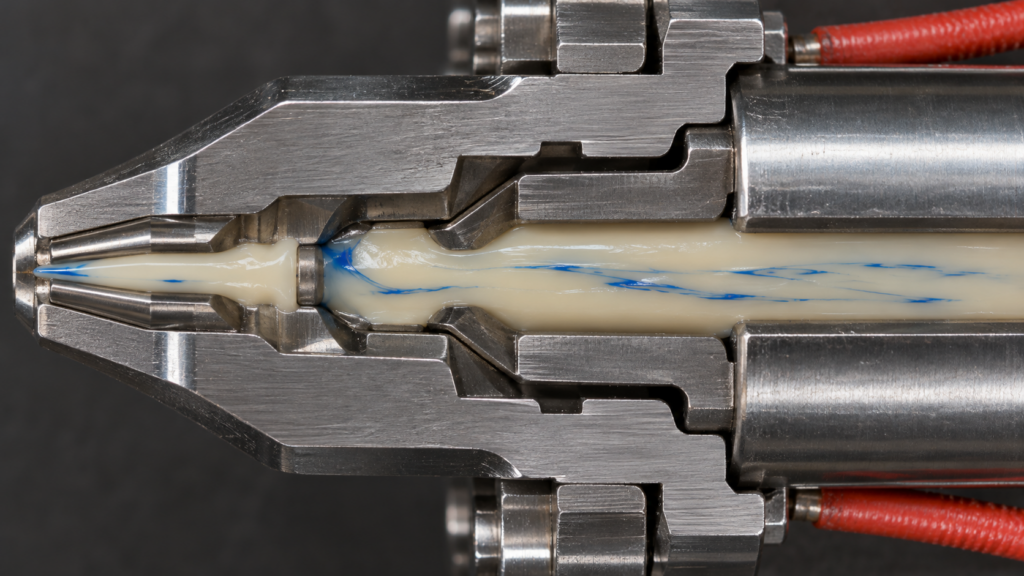

- Color/Material Transition Procedures: Establish and follow precise instructions for switching materials or colors.
- Use of Low-Residue Polymers: When shutting down for extended periods, consider purging with a stable, low-residue material.
The Importance of Preventive Maintenance
Preventive maintenance is vital for ensuring the longevity and efficiency of hot runner systems, ensuring a clean injection molding process. Regular maintenance helps in:
- Reducing unexpected downtime.
- Maintaining consistent product quality.
- Extending the lifespan of system components.
- Enhancing overall operational efficiency.
Reduce contamination in hot runner systems before it has a chance to begin. Implementing a structured maintenance program, including routine inspections, cleaning, and component replacements, is essential for optimal system performance.
Polymer Cleaning Technology: Leading the Way in Hot Runner Services and Parts
Polymer Cleaning Technology (PCT) stands as a leading provider of hot runner parts and maintenance services globally. We regularly deal with causes of contamination in hot runner systems, able to refurbish all makes and models to peak performance.
With a commitment to quality and customer satisfaction, PCT offers:
- Technical Support: Guidance and support for troubleshooting and optimizing hot runner systems.
- Comprehensive Parts Inventory: Standard, non-standard, and custom parts for all OEM.
- Expert Maintenance Services: Cleaning, inspection, and repair services – Performance Assured.
Services Offered
Hot Runner Cleaning
Specialized chemical-free cleaning systems remove polymer residue without damaging metal surfaces.
Preventive Maintenance Programs
Tailored service schedules to suit production environments.
Component Repair & Refurbishment
Includes manifolds, heaters, nozzles, and temperature control systems.
Reverse Engineering & Custom Parts
Solutions for hard-to-find or discontinued OEM parts.
Parts Inventory
- Nozzle Tip Insulators
- Heaters (coils, bands, cartridges)
- Thermocouples
- Nozzle Tips
- Valve Pins
- Nozzle Housings
- Sealing kits
*This information is to be used as a general guideline only. Speak to your system manufacturer directly for verified information regarding your Hot Runner System.
